Page 1
[Transcribed from the original ten-page issue. Paragraphs are reflowed from the original setting; spelling, punctuation and wording follow the original, including its own inconsistencies. Editorial notes appear in [square brackets].]

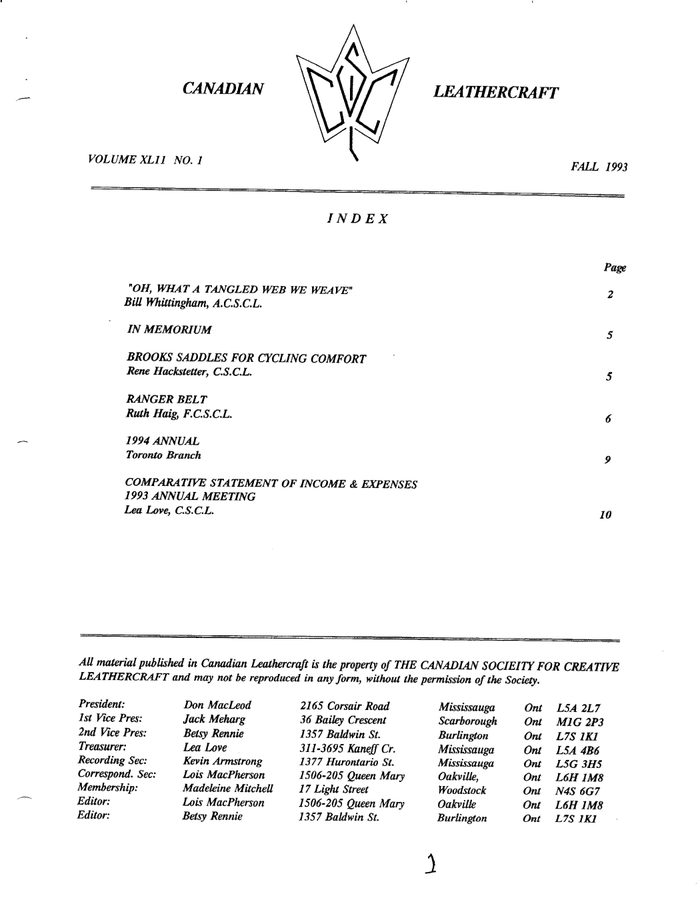

CANADIAN LEATHERCRAFT VOLUME XLII NO. 1 FALL 1993
INDEX
Page
"OH, WHAT A TANGLED WEB WE WEAVE" 2 Bill Whittingham, A.C.S.C.L. IN MEMORIUM 5 BROOKS SADDLES FOR CYCLING COMFORT 5 René Hackstetter, C.S.C.L. RANGER BELT 6 Ruth Haig, F.C.S.C.L. 1994 ANNUAL 9 Toronto Branch COMPARATIVE STATEMENT OF INCOME & EXPENSES 10 1993 ANNUAL MEETING Lea Love, C.S.C.L.
All material published in Canadian Leathercraft is the property of THE CANADIAN SOCIETY FOR CREATIVE LEATHERCRAFT may not be reproduced in any form, without the permission of the Society.
EXECUTIVE
President: Don MacLeod 2165 Corsair Road Mississauga Ont L5A 2L7 1st Vice Pres: Jack Meharg 36 Bailey Crescent Scarborough Ont M1G 2P3 2nd Vice Pres: Betsy Rennie 1357 Baldwin St. Burlington Ont L7S 1K1 Treasurer: Lea Love 311-3695 Kaneff Cr. Mississauga Ont L5A 4B6 Recording Sec: Kevin Armstrong 1377 Hurontario St. Mississauga Ont L5G 3H5 Correspond. Sec: Lois MacPherson 1506-205 Queen Mary Oakville Ont L6H 1M8 Membership: Madeleine Mitchell 17 Light Street Woodstock Ont N4S 6G7 Editor: Lois MacPherson 1506-205 Queen Mary Oakville Ont L6H 1M8 Editor: Betsy Rennie 1357 Baldwin St. Burlington Ont L7S 1K1
[Lois MacPherson's address changes this issue, from Lynnwood Drive to 1506-205 Queen Mary. The original prints "SOCIEITY" for SOCIETY in the copyright line, and omits "and" before "may not be reproduced".]
Page 2
"OH, WHAT A TANGLED WEB WE WEAVE"
Bill Whittingham, A.C.S.C.L.
This is one of those projects that was completed in my mind, long before I physically started to work on it.
Five years ago, while walking through a friend’s garden, I noticed a large spider web in a prime location. It was a true piece of architectural magnificence, a virtual "Sky Dome" of the insect world. It was proudly decorated with cocooned trophies and the spider himself had set up housekeeping in a nearby rose bush, anxiously awaiting the arrival of his next meal.
Needless to say, it was then that my spider web bookends were conceived. Looking upon that magnificent web made me realize how versatile a pattern the spider web could be in our art form. Within minutes, had the project completed in my head and it stayed there for three years without any further action.
My biggest problem in starting the bookends was finding the metal blank I wanted to use as a core. talked to metal shops, friends, even the industrial arts teacher at my old high school, but no one could help. Just when I had finally given up, a "dear heart" came forward and gave me the necessary blanks from her own supplies. (You know who you are; thank you once again). So, my advice to you is, find the metal blanks first and then proceed with the project.
As you know, bookend blanks can come in a number of different shapes (See Fig. 1) and the spider web design is adaptable to each one of these shapes, depending on how you want to draw the web. (Fig. 2)
Skiving: the first step is to cover the foot of your metal blank with skiver or a similar leather of your choice. I chose a dark brown assisted morocco, because it skives well and has a rich lustre and feel, which adds to the look of the piece, overall.
Make a pattern for covering the foot of the metal blank. On a piece of cardboard, trace around the foot of the bookend and add about 1/2" to the base of the pattern, as shown in Fig. 3A. This piece will cover the bottom of the bookend. Cut two (2) from your leather.
To make the pattern for the top of the bookend foot, once again trace the foot on a piece of cardboard, then add 3/8" around the three sides indicated in Fig. 3B. This added 3/8" of leather will be skived, which allows you to completely cover the metal foot, as well as the edges. Cut two (2) from your leather.
Once you have done your skiving, you are ready to glue. Take a piece of steel wool or sandpaper and rough up the entire surface of both bookends, which prepares the surface for maximum adhesion. Spread contact cement on the bottom of each bookend foot and 1/2" up the face of the bookend, then on the flesh side of the two pieces of leather from Fig. 3A. Allow the cement to set, then adhere them, making sure there are no ripples in the leather.
Now spread glue on top of the bookend foot and on the flesh side of the skived pieces of leather, but on the skived area. Adhere the two glued surfaces as before, making sure to centre the leather carefully. Take a piece of sandpaper and rough up 1/4" around the three sides of the bottom piece of leather that your skived leather is going to adhere to; cut the corners off the skived section, as in Fig. 3C. Glue the skiver to the sanded leather and use a bone folder to ensure maximum adhesion. It should now look like Fig. 3D.
Page 3
THE WEB: Trace the shape of the face of the metal blank on your tracing film and decide which variation of the web in Fig.2 looks best for your project. If you choose the full web, (Fig. 2A), one tracing is enough. If you choose one of the other designs, you may want to make two tracings as in Fig. 4.
THE LEATHER: Use 8 oz. cowhide for the body of the bookends. Cut 4 pieces of leather the same shape as the face of the metal blank, but make them 3/8" larger on each side and the top. Select 2 pieces to be the front of the bookends and case them. Trace your pattern onto the leather. Remove the tracing film and retrace the pattern, making the grooves deeper. Take your #7 overstitcher and run it down each groove you traced. Place the leather on a rubber mat and use your sewing awl to make your stitching holes.
THE COLOUR: Colour is always a matter of personal taste. I chose to go with a triple tone effect. For the base colour, I mixed three parts Fiebing’s TanKote to one part Fiebing’s medium brown dye. This gives the leather a rich golden tone. The second coat is full strength Fiebing’s medium brown, applied to a dry sponge with a Q-tip. Blot off almost all the dye onto a paper towel then start to burnish the dye onto the leather, moving from the edge to the centre, going in about an inch and stopping. (Fig. 5A) The centre area should be left the original golden colour, the sponged area should be light brown.
The third colour application is straight medium brown on the sponge, but this time just blot the sponge on the paper towel a couple of times and then burnish the colour from the outside edge toward the centre about 1/2" (Fig. 5B) You now have 3 colours, moving from light in the centre to the darkest colour at the edge.
The two remaining pieces of cowhide for the back side of the bookends should be dyed the same as the outside of the front section (medium brown). Apply a final finish to all four pieces.
THE SPIDER: This optional addition is also a matter of taste. I wet-moulded lizard skin that had been cut in the shape of a figure eight. (Fig. 6) To get the proper rounded effect, I used a ball point modeller for the head and the bottom of a glass cigar tube for the body. Once the lizard skin has dried, fill the cavity with caulking silicone or a mixture of leather dust and white cement. Use a thin piece of skiver for the bottom of the spider and cement this in place.
The spider legs are black, waxed thread, but these are not saddle stitched. Each joint in Fig. 7 is an individual piece of thread, and is meant to sit on top of the web thread, just like a real spider. Once you have sewn the legs, slightly rough up the leather finish where the spider body is going to sit, with the point of an Xacto knife. Glue the body in place.
Now we're in the home stretch! You are ready to glue the front and back pieces to the metal blank. Carefully line the pieces up so that the edges are even. Use a #2 edger on all the edges and sand them until they are perfectly smooth. Dampen the edges with a sponge and burnish the edges with a bone folder.
Dye the edges with a (Q-tip, (medium brown, again) and finish the edges with Polish Coat or Super Sheen. If the finish drys a little rough, rub a light coat of bees wax on the edges and burnish.
That’s it; you’re done! Next time you're in the garden, make sure you take the time to smell the roses. It’s amazing what may happen.
Page 4

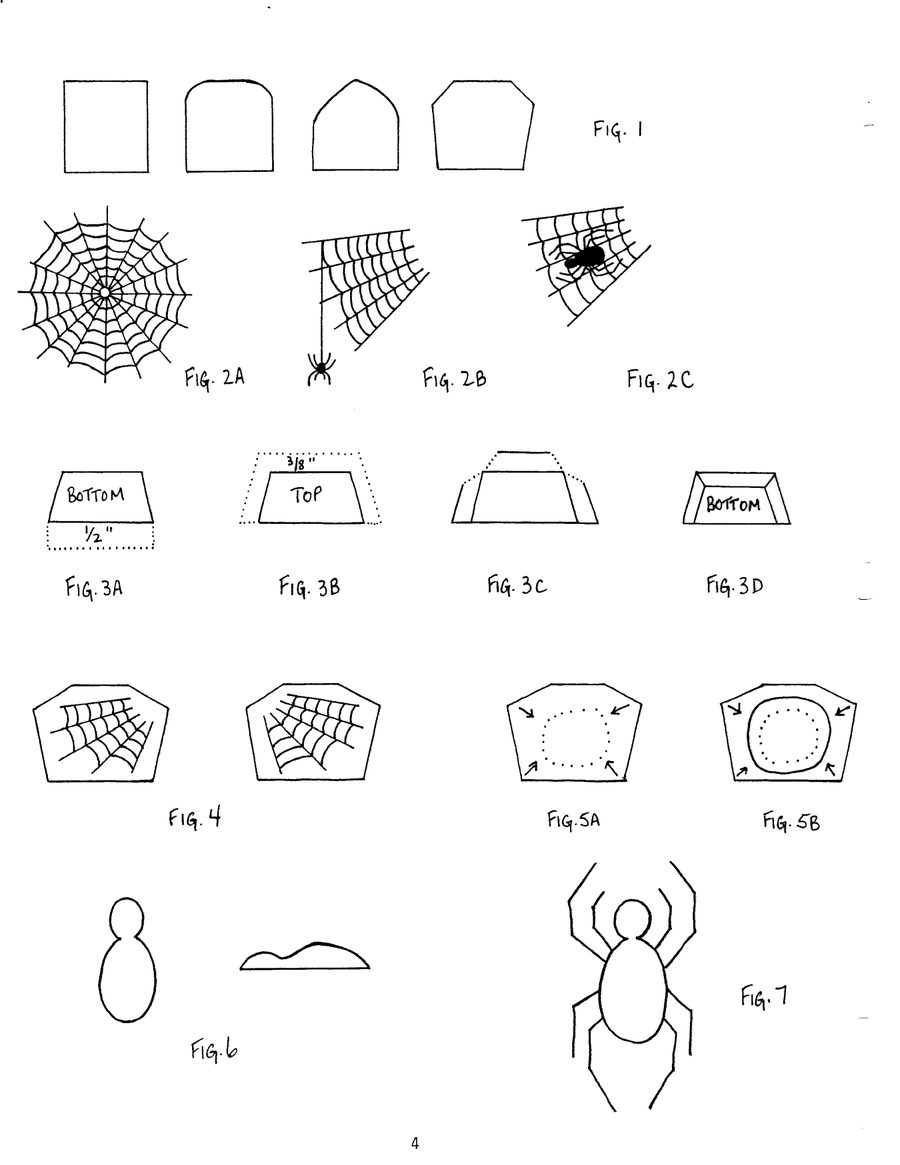

[A full page of hand-drawn figures for the spider web bookends — Fig. 1 showing bookend blank shapes, and further figures showing the web layout, the skiving, the spider, and the assembly. The captions are hand-lettered and only "Fig. 1" is clearly legible in the scan.]
Page 5
IN MEMORIUM
C.S.C.L. lost a longtime member and good friend when Sherle Bottrill passed away at the Barrie hospital on August 9th.
After years of secretarial employment in Toronto, Sherle joined Clarke and Clarke Leathers of Barrie in 1952. For some of the time with this company, she worked at the store at 523 Mount Pleasant Road, Toronto. Tandy Corporation later bought the retail division of Clarke and Clarke.
Sherle joined C.S.C.L. in the early days and took lessons from Bob Muma and Don McKinnon. She obtained her Associate standing in 1962 and, at that time, was President of the Barrie Branch, as well as being the Corresponding Secretary of C.S.C.L. Executive Council. She was awarded several Salon ribbons for her leather work and demonstrated at sales and Annual Meetings. At the Annual in 1985, she was made an honourary Life Member for her service to the Society.
Sherle’s husband, Geoff, passed away in 1978 and following that, she moved to Grove Park Home in 1983. Here, she continued to do leathercraft as well as the needlecraft and decoupage that she enjoyed so much. She was also a Life Member of the Simcoe County Arts and Crafts Association.
While not able to practice crafts in recent years, Sherle always maintained interest and kept in contact with her friends. She will be greatly missed.
The Hamilton Leather Guild mourns the recent passing of a long-time member, Jessie Strain. Jessie was a tireless worker, a good friend to all and a valued teacher, who will be missed by everyone.
BROOKS SADDLES FOR CYCLING COMFORT
René Hackstetter, C.S.C.L.
Brooks "Criterion Works" was located in Birmingham and in the cycle world, the model "B-17", now called the "Professional" saddle, is one of the benchmarks by which other all-leather saddles are judged.
The important points in saddle selection, claim the experts at Brooks, are first, correct shape that maintains itself, correct frame for the type of riding and finally, correct size and strength of springwork to suit the rider.
The leather is part spring and framework and, therefore, must be made of material to perform both functions. Only the highest grade and above medium quality.
As a cyclist who rides distance events, I can assure you that using a leather saddle is not only more comfortable than any modern plastic and foam type, but cooler to ride as well, because the leather "breathes".
The price of a genuine "Brooks" saddle is high, but after years of use, an old B-17 still retains its shape and provides a painless ride over the distance.
As the old adage goes, "There’s nothing like leather".
Page 6
RANGER BELT
Ruth Haig, F.C.S.C.L.
The history of the Ranger Belt
The ranger belt design came out of necessity. Range riders found when they fastened their canteens, knives, ropes, etc. to their regular belts, the area where the tine of the buckle entered the billet end was a point of stress. The destruction from wear at this point left an otherwise good belt body useless, except as a smaller size belt.
By adjusting the length of the body of a belt and stitching on the buckle and billet ends (both removable for replacements) this problem was solved and the new belt became known as the Ranger Belt.
Al Stohlman’s book, "Belts Galore”, best describes the appearance and assembly of the Ranger Belt, with or without design. Our thanks to Al.
Tips before construction begins:
Before cutting the waist size, allow 6" extra, as casing the leather causes shrinkage - more so in latter years, with new tanning techniques. Casing the leather is a must. This is done by soaking the leather in tepid water with a mild detergent added, for 3-5 minutes. Do not rinse, wrap it in a towel, and place it ina cool area until the leather returns to a natural colour (barely damp), then proceed.
When putting a border line on the belt, do it before a slight bevel is put on the edges. Put a finish on the back before dying the front and edges.
Cutting Procedure:
From 8 oz. leather, cut a belt blank 1-1/4" x waist measurement + 6". (1-1/2" may also be used.)
From 6 oz. leather, cut the buckle strap 7" long by 3/4" for a straight strap (allow 1 end taper as above, if you wish.)
Using 6 oz. leather, make a keeper for the billet, 5/8" long, enough to fasten and slot the billet through. Use oz leather, skived to half thickness, for the underside keeper, 1/2" x long enough for 1-1/2" coverage when finished. Construction:
Skive, as shown on the diagram. Mark grooving lines for saddle stitching. Groove the lines and, using a diamond awl, punch the holes of the #7 stitching wheel. Using a rotary punch, punch the holes on the buckle and billet ends, as indicated on the instructions.
The slot punch on the buckle end is along the length of the strap. The slot on the waist of the. belt is across the length of the belt. Very important: This slot placement is determined by the length of the buckle, e.g. 1" long - 1" in from the end.
When all the holes and skiving and pattern have been carried out, slick the back of all pieces, except where glue is to be applied, then finish dying the edges and body of the parts.
The billet end placement is now established, with the end of the strap at the end of the belt. (Any adjustment to waist size can be made at the buckle end with the slot.) When this is established, groove, mark stitch holes and proceed to stitch.
For the buckle end, have both keepers ready to place between the rivets, the 5/8" on top and the 1-1/4" on the bottom. (See diagram) I usually assemble this end by inserting the strap, with the buckle in place, into the slot, and set the first rivet at the end. Just under and behind the buckle is the 1-1/4" keeper, stitching, or cemented end up, then a rivet. The 5/8" keeper on top of the strap, then another rivet. The innermost part of the strap can then be cemented down and stitched.
These instructions are written in order of procedure. Study these and the assembly sheet carefully. If you take one step at a time, there should be no problem.
Pages 7–8

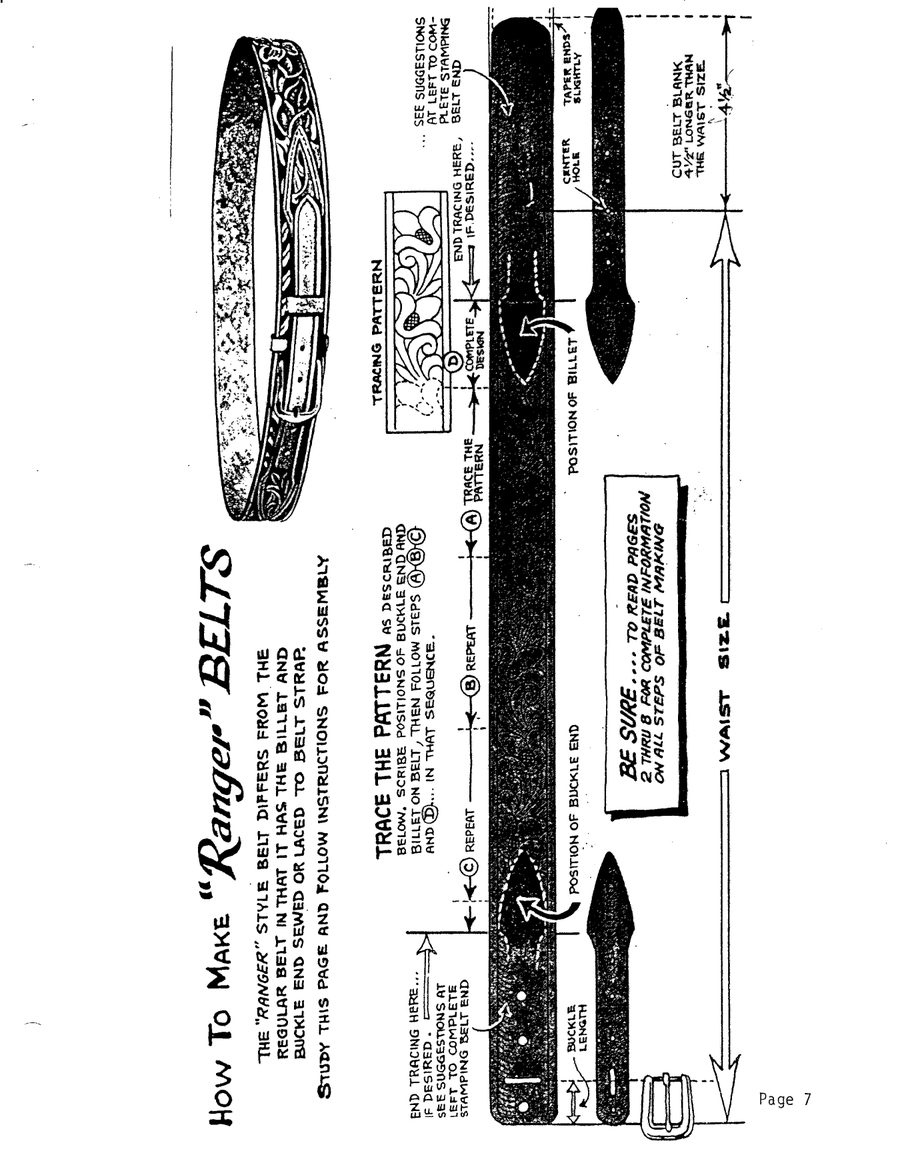

[Two full-page hand-drawn assembly sheets for the Ranger Belt, reprinted in the Al Stohlman manner and printed sideways in the original. A finished carved Ranger belt is photographed at the head of each. The lettering, read from the scan at magnification, is reproduced in full below; page references within it are to the book the sheets were reprinted from, not to this issue.]
How To Make “Ranger” BELTS
THE “RANGER” STYLE BELT DIFFERS FROM THE REGULAR BELT IN THAT IT HAS THE BILLET AND BUCKLE END SEWED OR LACED TO BELT STRAP.
STUDY THIS PAGE AND FOLLOW INSTRUCTIONS FOR ASSEMBLY.
TRACE THE PATTERN AS DESCRIBED BELOW. SCRIBE POSITIONS OF BUCKLE END AND BILLET ON BELT, THEN FOLLOW STEPS (A) (B) (C) AND (D)… IN THAT SEQUENCE. END TRACING HERE… IF DESIRED. SEE SUGGESTIONS AT LEFT TO COMPLETE STAMPING BELT END.
(C) REPEAT — (B) REPEAT — (A) TRACE THE PATTERN — (D) COMPLETE DESIGN BUCKLE LENGTH POSITION OF BUCKLE END POSITION OF BILLET CENTER HOLE TAPER ENDS SLIGHTLY |<——— WAIST SIZE ———>|<— 4-1/2" —>|
BE SURE… TO READ PAGES 2 THRU 8 FOR COMPLETE INFORMATION ON ALL STEPS OF BELT MAKING. CUT BELT BLANK 4-1/2″ LONGER THAN THE WAIST SIZE.

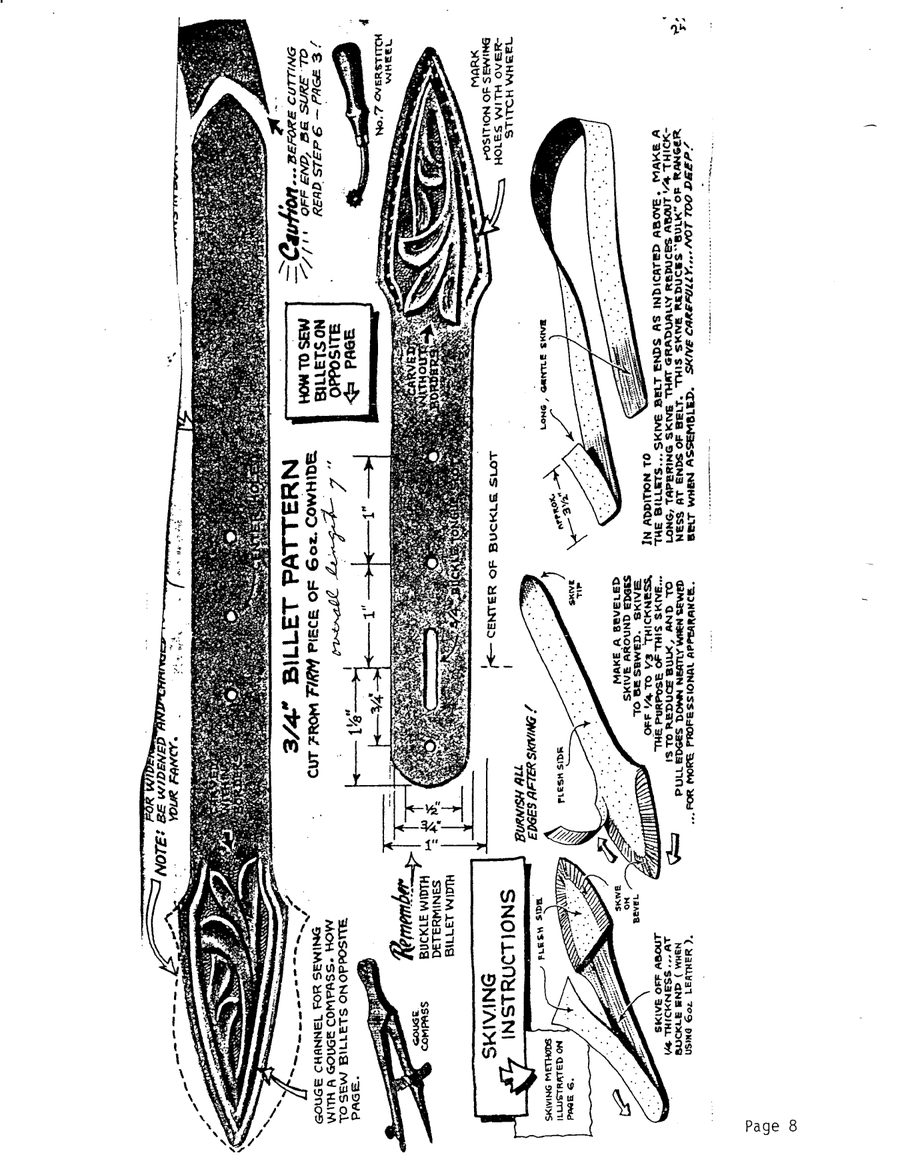

Billet Pattern and Skiving Instructions
[The facing sheet. A carved belt runs across the head of the page; the note at the top left is partly buried under the heavily inked reproduction and cannot be read in full — the words given are those that survive at 2× on the scan. Its sense is that the billet pattern may be widened and altered for wider belts to suit the maker.]
NOTE: [illegible] FOR WIDER [illegible] BE WIDENED AND CHANGED [illegible] YOUR FANCY. [a further fragment to the right ends “…ONS IN BOOK”]
GOUGE CHANNEL FOR SEWING WITH A GOUGE COMPASS. HOW TO SEW BILLETS ON OPPOSITE PAGE.
3/4" BILLET PATTERN CUT FROM FIRM PIECE OF 6 oz. COWHIDE — overall length 7" |<— 1-1/8" —>|<— 1" —>|<— 1" —>| |<— 3/4" —>| CARVED WITHIN BORDERS CENTER HOLE 3/4" BUCKLE TONGUE SLOT CARVED WITHOUT BORDERS
Remember — BUCKLE WIDTH DETERMINES BILLET WIDTH. Caution… BEFORE CUTTING OFF END, BE SURE TO READ STEP 6 — PAGE 3! MARK POSITION OF SEWING HOLES WITH THE No. 7 OVERSTITCH WHEEL.
Skiving Instructions
SKIVING METHODS ILLUSTRATED ON PAGE 6. BURNISH ALL EDGES AFTER SKIVING! SKIVE OFF ABOUT 1/4 THICKNESS… AT BUCKLE END (WHEN USING 6 oz. LEATHER).
MAKE A BEVELED SKIVE AROUND EDGES TO BE SEWED. SKIVE OFF 1/4 TO 1/3 THICKNESS. THE PURPOSE OF THIS SKIVE… IS TO REDUCE BULK, AND TO PULL EDGES DOWN NEATLY WHEN SEWED …FOR MORE PROFESSIONAL APPEARANCE.
IN ADDITION TO THE BILLETS… SKIVE BELT ENDS AS INDICATED ABOVE. MAKE A LONG, TAPERING SKIVE THAT GRADUALLY REDUCES ABOUT 1/4 THICKNESS AT ENDS OF BELT. THIS SKIVE REDUCES “BULK” OF RANGER BELT WHEN ASSEMBLED. SKIVE CAREFULLY… NOT TOO DEEP!
Page 9

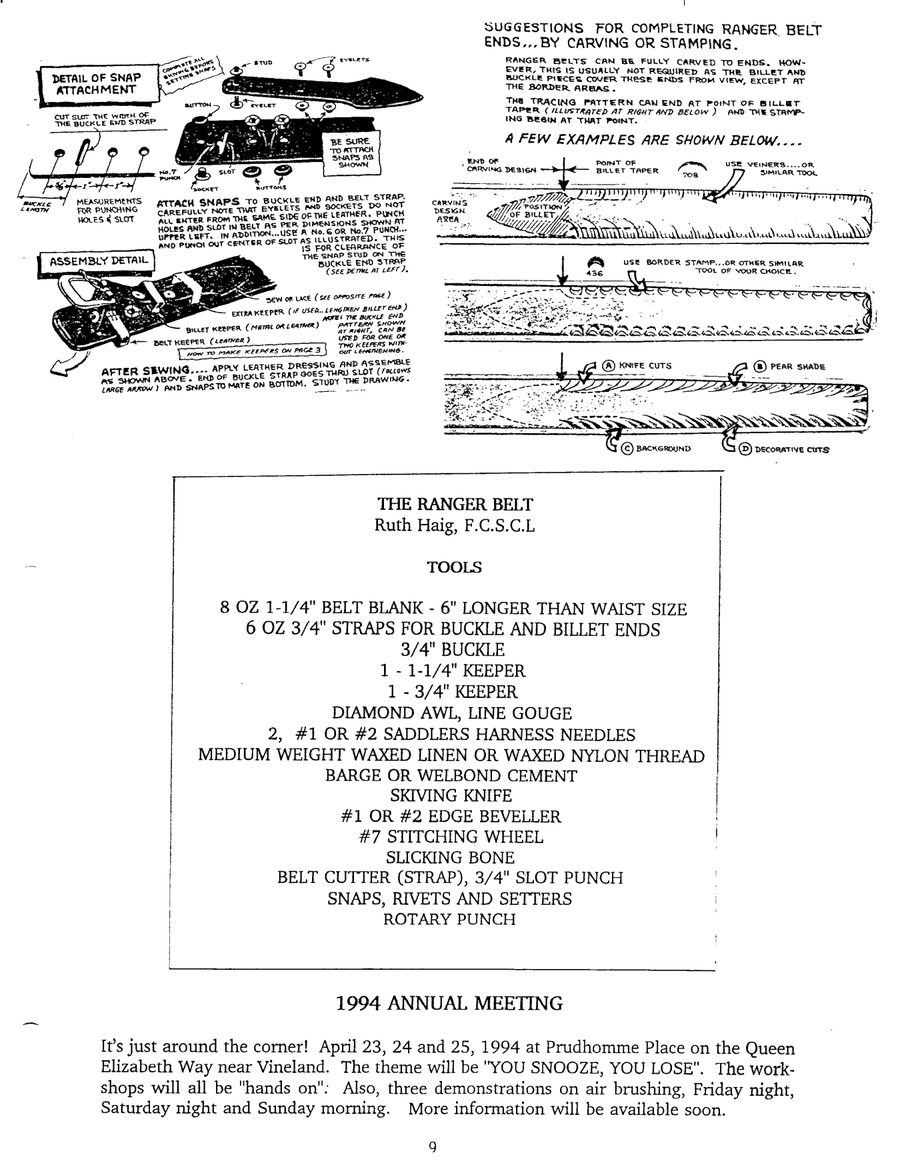

[The upper two thirds of the page is a third reprinted hand-lettered sheet, printed upright. Its full text is reproduced here.]
Detail of Snap Attachment
COMPLETE ALL SKIVING BEFORE SETTING SNAPS. CUT SLOT THE WIDTH OF THE BUCKLE END STRAP.
MEASUREMENTS FOR PUNCHING HOLES & SLOT — 5/8" 1" 1" STUD EYELETS EYELET BUTTON SOCKET BUTTONS No. 7 PUNCH SLOT
BE SURE TO ATTACH SNAPS AS SHOWN. ATTACH SNAPS TO BUCKLE END AND BELT STRAP. CAREFULLY NOTE THAT EYELETS AND SOCKETS DO NOT ALL ENTER FROM THE SAME SIDE OF THE LEATHER. PUNCH HOLES AND SLOT IN BELT AS PER DIMENSIONS SHOWN AT UPPER LEFT. IN ADDITION…USE A No. 6 OR No. 7 PUNCH… AND PUNCH OUT CENTER OF SLOT AS ILLUSTRATED. THIS IS FOR CLEARANCE OF THE SNAP STUD ON THE BUCKLE END STRAP (SEE DETAIL AT LEFT).
Assembly Detail
SEW OR LACE (SEE OPPOSITE PAGE). EXTRA KEEPER (IF USED… LENGTHEN BILLET END). BILLET AND BUCKLE PIECES COVER THESE ENDS FROM VIEW, EXCEPT AT THE BORDER AREAS. RANGER BELTS CAN BE FULLY CARVED TO ENDS. HOWEVER, THIS IS USUALLY NOT REQUIRED AS THE BILLET AND BUCKLE PIECES COVER THE ENDS. THE TRACING PATTERN CAN END AT POINT OF BILLET TAPER AND THE STAMPING BEGIN AT THAT POINT. USE BORDER STAMP…OR OTHER SIMILAR TOOL OF YOUR CHOICE. USE VEINERS…OR SIMILAR TOOL.
Page 10
CANADIAN SOCIETY FOR CREATIVE LEATHERCRAFT
COMPARATIVE STATEMENT OF INCOME AND EXPENSES — ANNUAL MEETINGS
April 23-25 April 24-26 1993 1992 INCOME Advance to Royal Resort $ 250.00 $ 200.00 Banquet Income (Plus other foods) 1133.00 1350.00 Donations 60.00 Draw Tables 93.00 322.00 Registration Fees (44) 660.00 (56) 840.00 Special Draw 75.00 86.00 M.S.C.L. Coffee Break 60.38 Bank Interest 15.18 Total Income $ 2271.00 $ 2873.56 EXPENDITURES Repayment of Advance $ 250.00 $ 200.00 Banquet and Food Costs 1242.34 1548.35 Bank Charges 1.01 15.25 Miscellaneous 25.05 Office Supplies 8.77 Postage 49.34 Printing and Reproduction 11.00 Speaker 50.00 160.15 Room Rental 600.00 Early Registration Prize 15.00 Advertising and Entertainment 48.10 Total Expense $ 1637.51 $ 2586.85 Gross Income from Operation $ 633.49 $ 286.71 OTHER EXPENSES Prize $ 50.00 $ 50.00 President Room Allowance 100.00 62.09 Annual Report Cost 69.53 89.70 Ribbon etc. Estimate (a) 125.00 132.25 Judging Facilities 100.00 150.00 Postage 60.41 Film, Development 23.00 $ 444.53 $ 567.45 Net Income (or Loss) on Activity $ 188.96 $ (280.74)
Note (a) Estimate as actual not available at time of Report
Completed 8/25/93 10:45 P.M. L. LOVE
